Crawler One Compatible Parts

Geared DC Motor — Set of 4

From A$21.70
Quantity
1
Geared DC Motor — Set of 4—
A$21.70

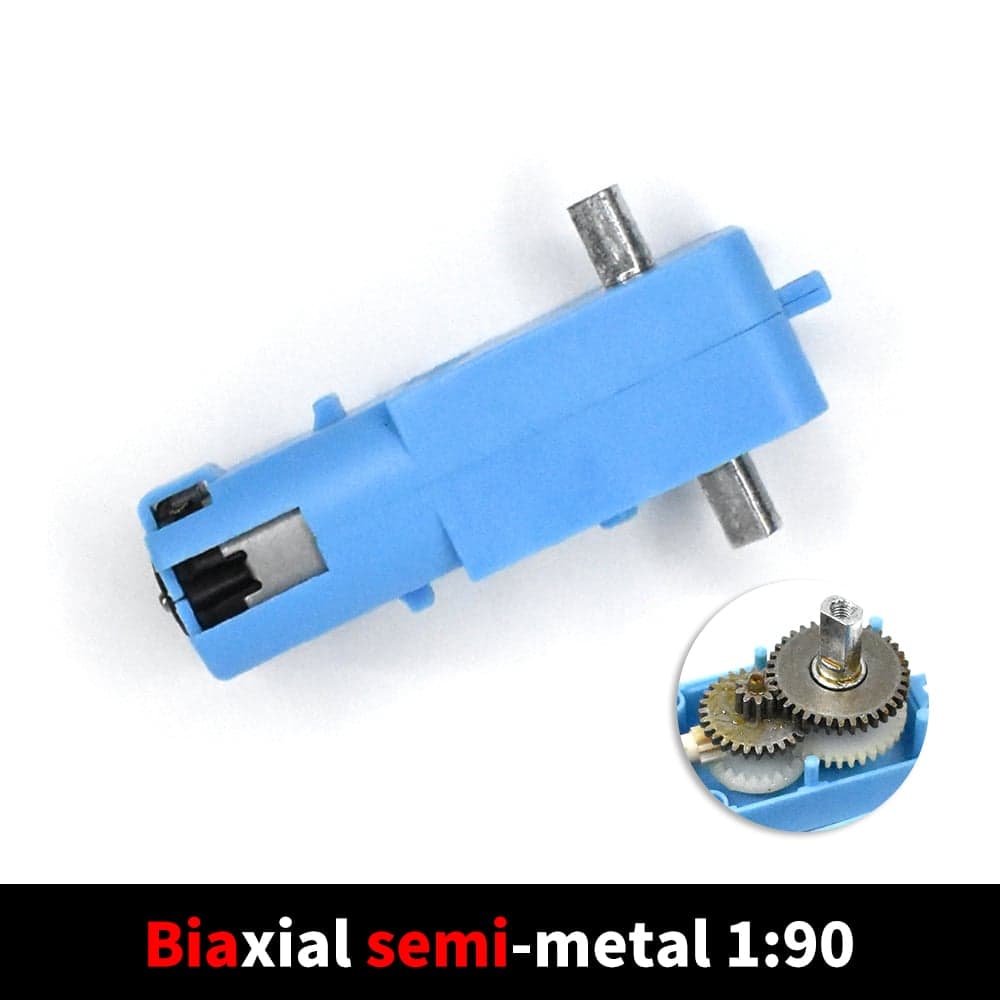

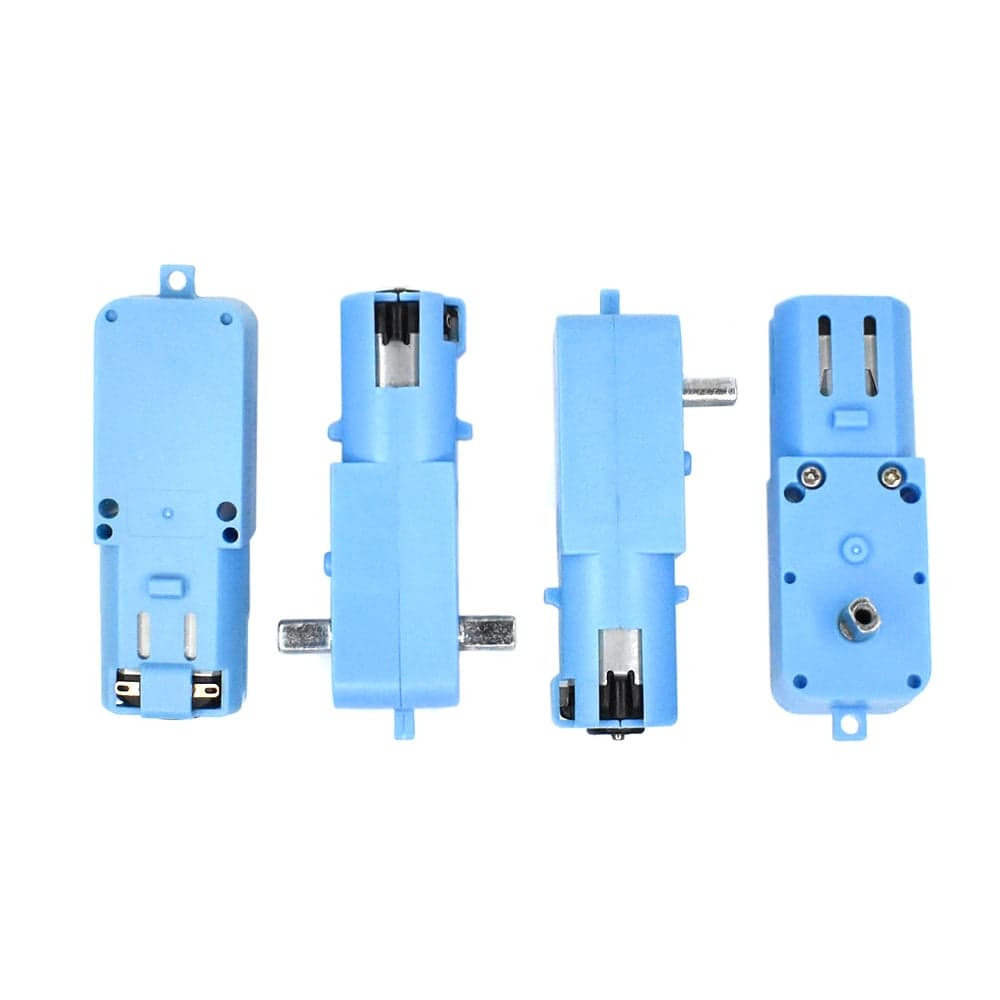

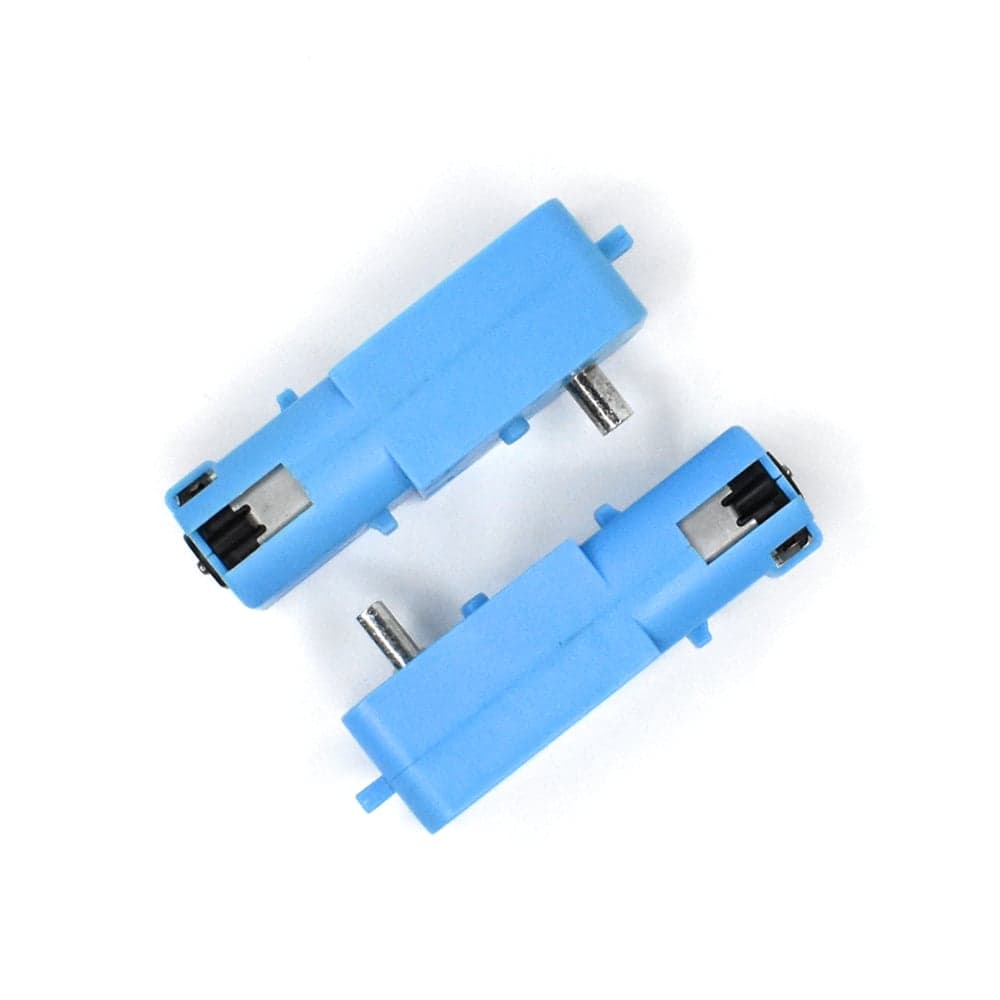

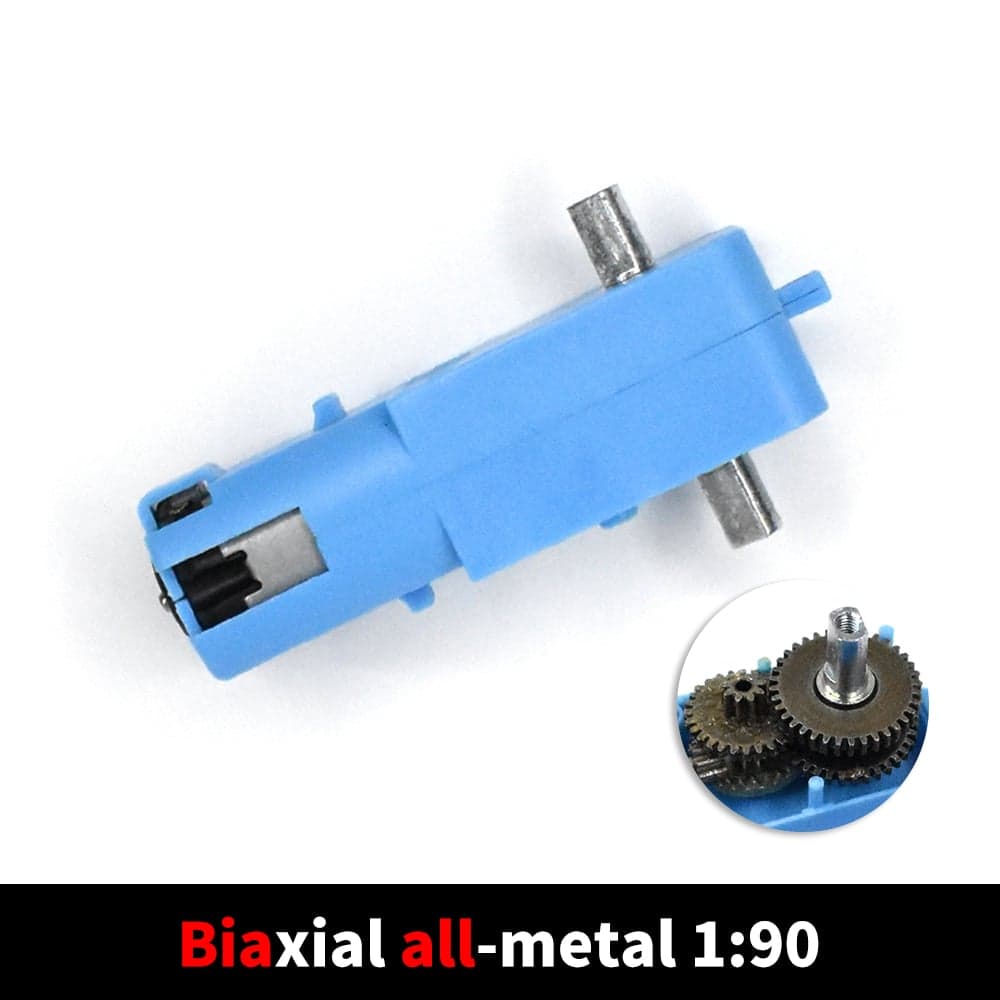

Set of four dual-shaft (biaxial) plastic-bodied gear motors — the drive units used by the Crawler One tracked rover. Each motor has a 1:90 reduction gearbox and runs cleanly from 3 V to 6 V, making it a perfect match for two 18650 cells through the included buck converter.

The dual-shaft design lets you drive both track sprockets from a single motor mount, and the compact L-shape footprint slips inside the Crawler One chassis without any extra brackets.

Product parameters

Working voltage
3 V – 6 V DC
Rated voltage
5 V
Reduction ratio
1:90
No-load speed
~200 RPM @ 5 V
Stall current
~600 mA @ 5 V
Shaft type
dual-axis (biaxial), D-cut
Quantity
4 motors per pack
Body
ABS plastic, blue

Features

  • •Dual output shafts — drive sprockets on both sides from one motor mount.
  • •1:90 reduction gives strong low-speed torque, ideal for tracked vehicles.
  • •Drop-in replacement for any standard TT-style gearmotor footprint.
  • •Solder tabs accept 22–26 AWG wire directly.
  • •Set of four — enough to build one Crawler One with a spare.
Compatible with

This part is designed for the kit below.
